SAML Authentication Setup Guide between Fracttal and Keycloak

Prerequisites

Administrative access to Keycloak (version 16.1.1 or higher).
Administrative access to Fracttal.
Fracttal base URL: https://app.fracttal.com
SAML configuration key name (for example, in this document I use: fracttalkeykloak). This value must be unique and match the one configured in Keycloak.

Client Creation in Keycloak

Log into the Keycloak administration console.

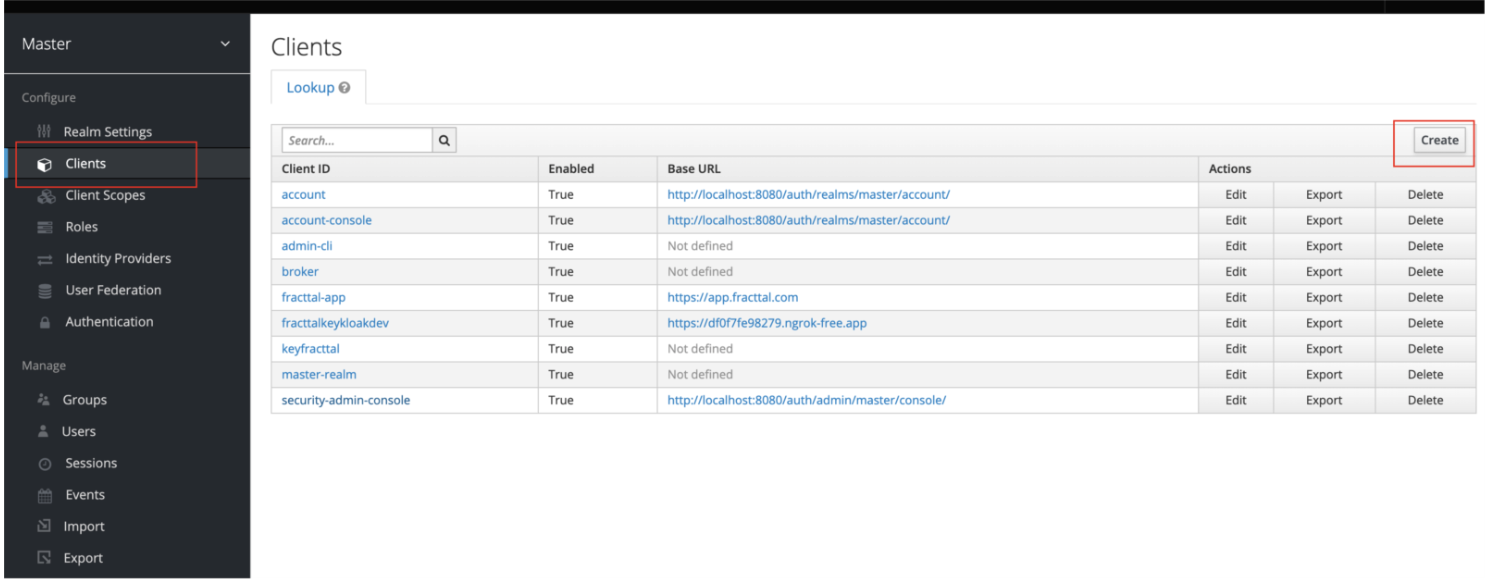

In the side menu, select: Configure → Clients.
Click the 'Create' button.

In the 'Client ID' field, enter the client identifier: fracttal-app. (this is the value I use for the example, but it's at the discretion of whoever configures it. The important thing is that it matches the issuer configured in Fracttal).
Select 'saml' as Client Protocol.
Press 'Save' to continue.

SAML Client Configuration

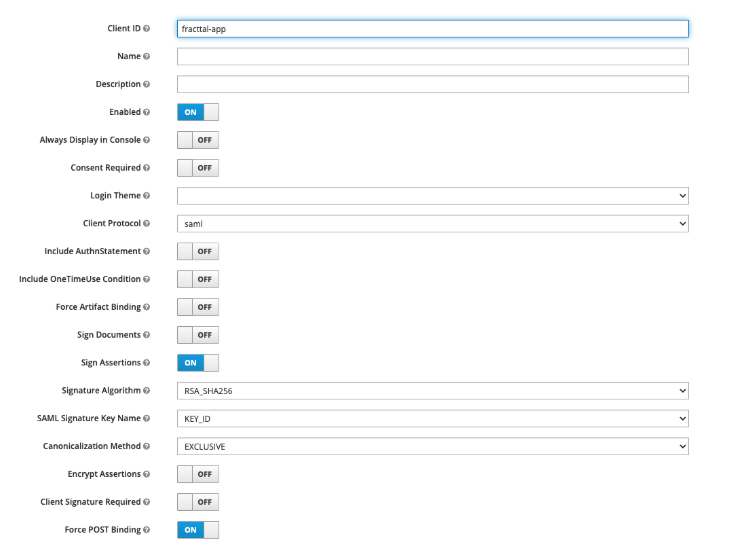

Once the client is created, configure the parameters in the 'Settings' tab as follows:

Parameter	Value	Description
Client ID	fracttal-app	Unique client identifier
Enabled	ON	Activates the client
Client Protocol	saml	Defines the SAML protocol
Sign Assertions	ON	This parameter indicates whether Keycloak should sign SAML assertions
Signature Algorithm	RSA_SHA256	Defines the cryptographic algorithm used to generate the digital signature in SAML messages
SAML Signature Key Name	KEYID	Specifies how Keycloak identifies the key used to sign the SAML message within the XML
Canonicalization Method	EXCLUSIVE	Defines the XML canonicalization method, which is how the document is normalized before applying the digital signature

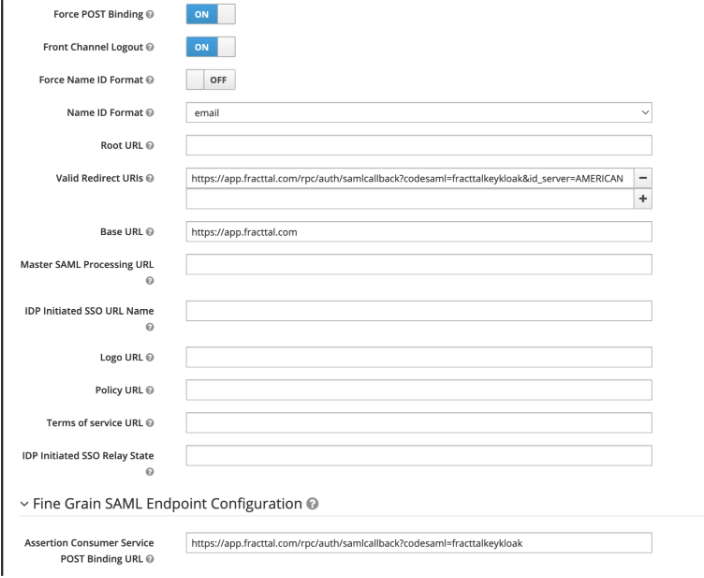

Force POST Binding	ON	Forces the POST method for SAML responses
Front Channel Logout	ON	Enables coordinated session logout
Name ID Format	email	Sends the user identifier as email
Valid Redirect URIs	https://app.fracttal.com/rpc/auth/samlcallback?codesaml=fracttalkeykloak&id_server=AMERICAN	Return URI to Fracttal
Base URL	https://app.fracttal.com	SP service base URL
Assertion Consumer Service POST Binding URL	https://app.fracttal.com/rpc/auth/samlcallback?codesaml=fracttalkeykloak	Endpoint where Fracttal receives SAML responses

Note

The value 'fracttalkeykloak' must match the key name configured in Fracttal. If another name is used, it should be replaced in all fields where it appears.

It's also not required to perform custom field mappings; just indicating that the NameID Format is email should work.

Configuration in Fracttal

To register the Identity Provider (Keycloak) in Fracttal:

Access Fracttal with an administrator user.
Go to Configuration → Security → SAML 2.0.

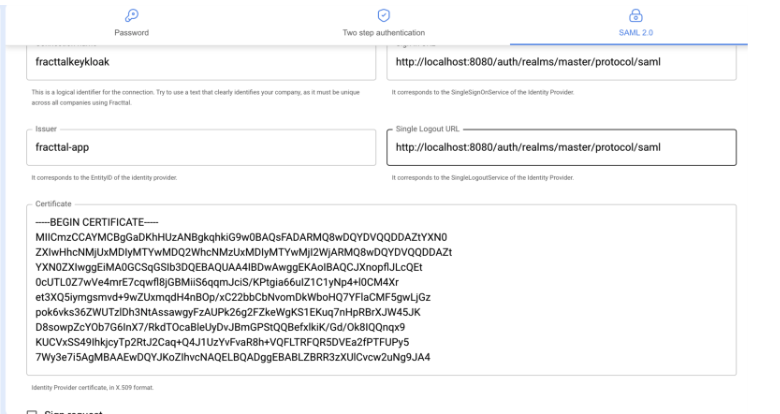

Complete the fields according to the following table.

Field	Value
Connection/Nickname	fracttalkeykloak
Issuer	fracttal-app
Single Sign-On URL	http://localhost:8080/auth/realms/master/protocol/saml
Single Logout URL	http://localhost:8080/auth/realms/master/protocol/saml
Certificate	(X.509 certificate exported from Keycloak)

The 'Issuer' field must have the same value as the Client ID of the client configured in Keycloak.

The URL fields (SSO and Logout) are obtained from the Identity Provider metadata in Keycloak, accessible from 'Realm Settings → General → SAML 2.0 Identity Provider Metadata'.

Export IdP Metadata

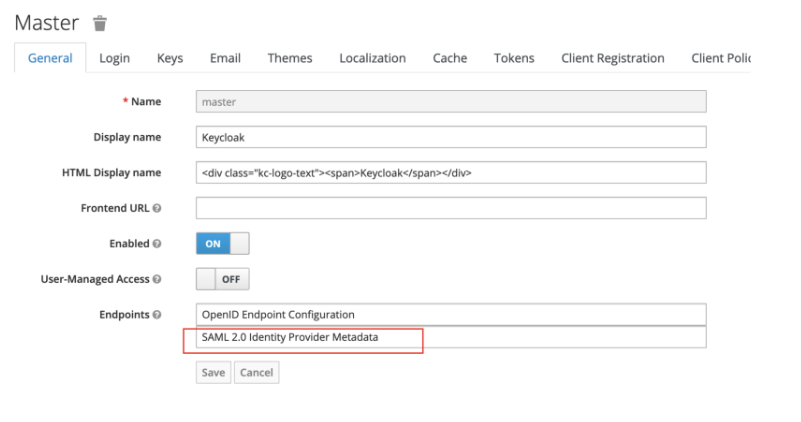

In the Realm view, open the 'General' tab.

Click on 'SAML 2.0 Identity Provider Metadata'.
Copy or download the XML content.
Extract the certificate and URLs (SingleSignOnService and SingleLogoutService) from the XML.
These values must match those configured in Fracttal.

Testing and Validation

Access Fracttal and try to log in with the configured SAML method.
Verify that it redirects to the Keycloak login.
Log in with the IdP credentials.
If authentication is successful, the user will automatically enter Fracttal.
